SPECIAL TOOLING

Scaffolding Pipe Threading Machine

Our sister-concern, M/s. Splinetech supplies all the requirements of spline, thread and rack rolling dies. These dies are designed in house with the software developed by us to give optimum roll life with exact profile of the rolled component as per customer drawings.

Used rolls/racks are successfully reground till their diameter reaches the minimum that the machine can take.

All the spline rolls are ground on Swiss make ‘Reishauer Gear Grinder’ (2 nos.) and UK make ‘Matrix Gear Grinder’ (2 nos.) and inspected by optical measuring equipment made in-house.

All the rolls are given special sub zero treatment before form grinding and stress relieving operation after form grinding. These two equipments are manufactured in-house.

All cylindrical grinding operations are done on our German make ‘Cincinnati’.

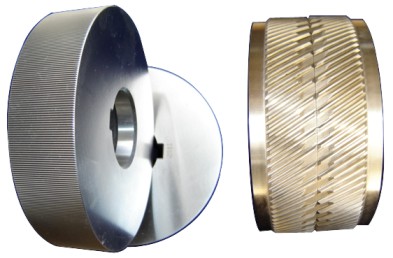

SPLINE ROLLS:

Scaffolding Pipe Threading Machine

SPECIAL THREAD ROLLS:

Scaffolding Pipe Threading Machine

RACKS (FLAT DIES):

Scaffolding Pipe Threading Machine
